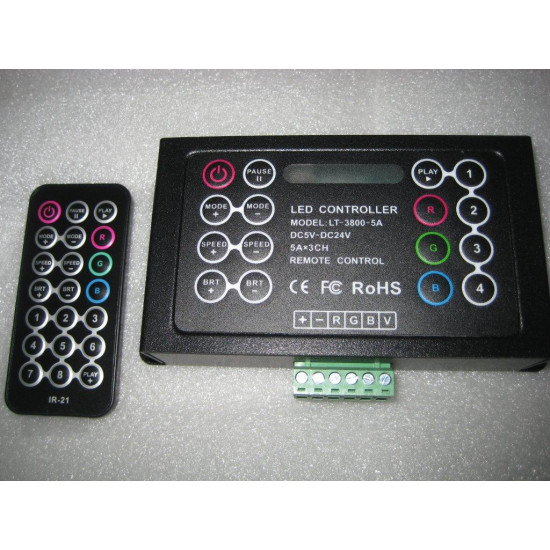

Manual RGB Control Module with Remote
The LT-3800-5A RGB controller is a unique and versatile DIY solution designed for users seeking easy and effective customization of their LED lighting. Compatible with 4-pin, 3-channel common anode LED setups, it features 18 built-in color change modes accessible through intuitive touch function buttons. Supplied with a wireless infrared remote control, it allows users to effortlessly manage color transitions and lighting effects, ensuring a smooth and user-friendly control experience.
DOWNLOAD
| Controller Specifications | |
| Voltage | DC 5V-24V |
| Capacity | 5A / Channel (3x) | 15A Maximum (5V - 90W, 12V - 180W, 24V - 360W) |
| Frequency | IR Remote |
| Type(s) | RGB |
| Protection Level (IP) | IP20 - Protected against solid objects over 12.5 mm, but no protection against water. |
| Remote Control Distance | 5 Meters (IR) |
| Remote Specifications | |
| Power | 1x Type C Battery |
| Number of Zones | 1 Zone |
| Functions | ON/OFF | Dimmable | Fix Color Choice (Red, Green, Blue) | Switch Modes | Adjust Speed. |
- Stock: In Stock
- Model: CONT-RGB LT-3800-6A
- Weight: 0.91kg
- Dimensions: 42.00mm x 73.00mm x 30.00mm
